this category. Under FMCSA regulations, any vehicle designed to carry 16 or more passengers including the driver requires a CDL with passenger endorsement. A configuration of 12 ambulatory passengers plus 2 wheelchair positions plus 1 driver equals 15 total — one below the CDL threshold in most states. For senior living facilities, churches, nonprofits, and healthcare organizations relying on staff or volunteers without commercial licenses, that single seat makes the difference between a vehicle their team can legally operate and one that requires hiring CDL drivers.
Ready to spec your fleet? Contact Endera's fleet specialists today to design a custom configuration blueprint for your operation.
What the Endera B4 ADA Configuration Delivers
Vehicle Specs and Floor Plan

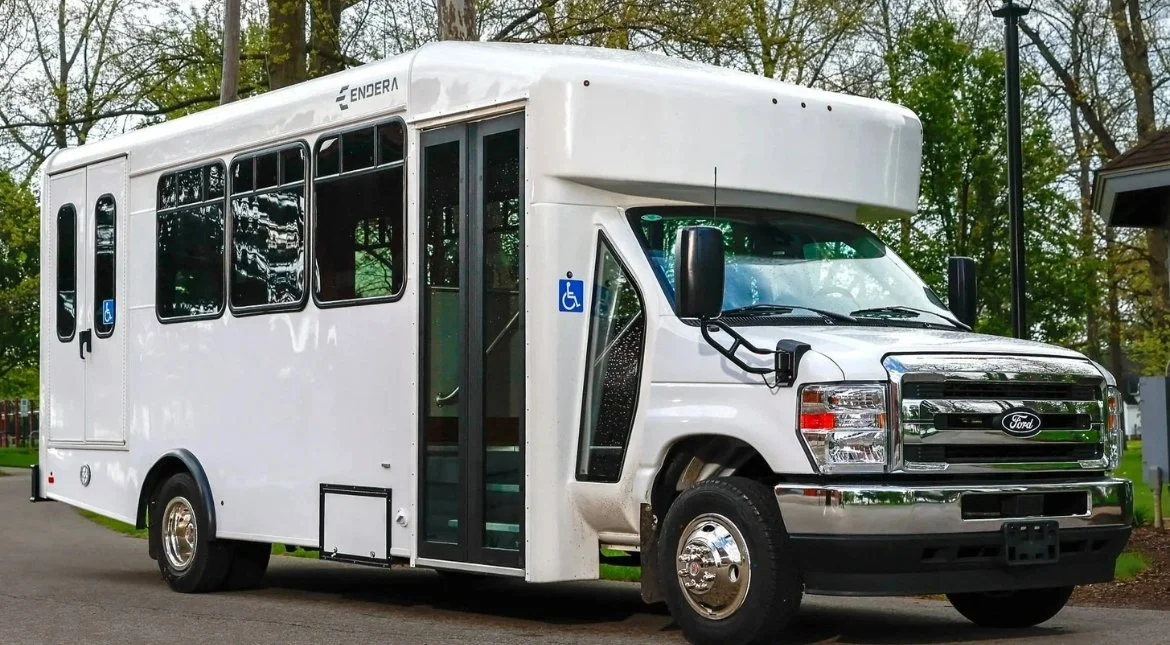

The Endera B4 is a 24-foot commercial shuttle built on the Ford E450 chassis — the same platform that underpins the most widely serviced cutaway buses in North America. In its standard ADA configuration, the B4 accommodates up to 12 ambulatory passengers plus two wheelchair positions, with fold-down seats that can convert several ambulatory positions to accommodate up to four wheelchairs total when needed. The lift is a full-capacity unit designed to meet 49 CFR Part 38 specifications — minimum 30-inch by 48-inch platform, 600-pound minimum design load — with front or rear placement options depending on the operator's boarding workflow.
Securement, Restraints, and Interior Layout
Each wheelchair position includes a two-part securement system as required under 49 CFR Part 38 — one system to secure the wheelchair itself, and a separate seatbelt and shoulder harness for the occupant. The securement system limits wheelchair movement to no more than two inches in any direction under normal operating conditions. Handrails, aisle width, and stepwell lighting are all configured to meet federal accessibility standards. Because Endera is a vertically integrated manufacturer — building both the body and the powertrain in-house — these specifications are incorporated into the structural design, not retrofitted after the fact.
ICE and Electric Options
The B4 ADA configuration is available in both ICE and electric variants. The ICE version runs on the Ford E450 with a 7.3L V8 engine — a platform with wide service network coverage across the country. The electric B4 uses Endera's 150 kWh proprietary powertrain, delivers up to 105 miles of range in Standard Range configuration, and is Altoona-certified with a score of 90.1 — the highest in its class, and required for FTA-funded purchases.

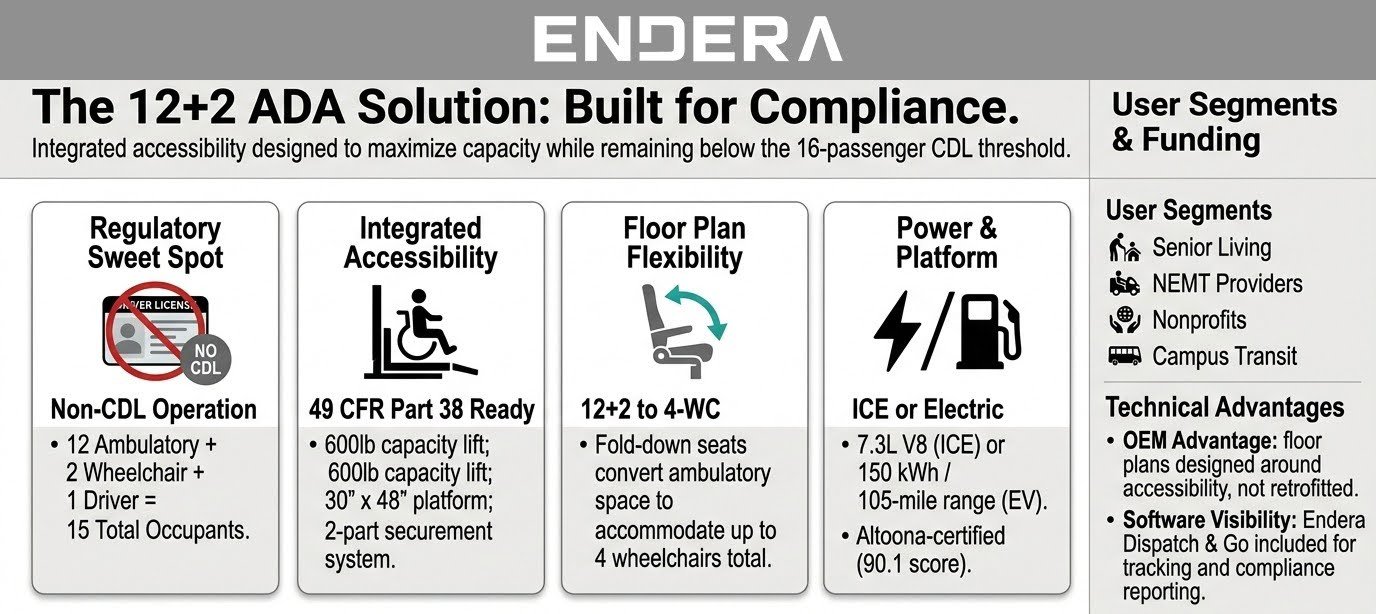

Why the 12+2 Layout Exists: A Regulatory Optimization, Not an Arbitrary Design Choice
The Logic Behind the Most Common ADA Shuttle Configuration
Most competing pages list the 12+2 configuration as a standard option without explaining why it became the dominant layout in the ADA shuttle market. It's the result of a deliberate optimization across licensing, accessibility, and staffing constraints. Under FMCSA rules, a CDL with passenger endorsement is required for vehicles designed to transport 16 or more passengers including the driver. That threshold defines how operators structure shuttle capacity in practice, since exceeding it triggers stricter licensing, training, and staffing requirements.
Why Wheelchair Positions Are Capacity-Neutral in This Equation
Many organizations deliberately design around a maximum of 15 total occupants including the driver. The 12+2+1 configuration is the most efficient way to maximize usable capacity while staying below the CDL threshold. Wheelchair positions are part of the total occupancy envelope but don't change how operators optimize seating strategy — they're treated as flexible, interchangeable positions that preserve accessibility without forcing a move into a different vehicle class.
Why a Single Seat Matters
Reducing one ambulatory seat can be the difference between operating under a non-CDL fleet model — volunteer or standard-licensed drivers — versus requiring CDL-certified staffing, which increases cost, limits hiring flexibility, and reduces operational scalability for smaller organizations. The 12+2 layout represents the highest usable ADA capacity that avoids crossing into commercial licensing complexity, which is why it has become the default configuration for senior transport, NEMT providers, nonprofits, and community shuttle operators.
OEM Integration vs. Conversion: Why It Matters for ADA Buyers
What a Conversion-Based Accessible Shuttle Looks Like
Most accessible shuttles in this capacity range are built by body builders who install lift systems into a pre-existing floor structure designed around an ICE drivetrain. The lift is added into whatever space remains after the base floor plan is set, securement zones are configured around fixed structural constraints, and the aisle geometry reflects what was left over rather than what accessibility requires. For organizations that use their accessible shuttle regularly — multiple runs per day, regular wheelchair boardings — those compromises accumulate in the form of restricted turning radius, awkward dwell time at the lift, and reduced usable capacity around the wheelchair positions.
What Endera's Integrated Approach Changes
Because Endera builds the body and the powertrain under one roof, the ADA floor plan is a first-order decision in the build process. Lift placement, aisle width, and securement geometry are designed around the wheelchair positions rather than adapted to fit around a pre-existing layout. The practical difference shows up in boarding time, aisle clearance for power mobility devices, and the usable mix of ambulatory and wheelchair-accessible positions across the vehicle's service life. Single-vendor accountability also matters for ADA buyers specifically: when the lift needs attention, there is one manufacturer responsible for the whole vehicle, not a chassis supplier, a body builder, and a separate lift installer.
Who Buys the 12-Passenger ADA Configuration
Senior Living and Memory Care Communities
Assisted living facilities, senior independent living communities, and memory care programs are the largest buyers of the 12-passenger ADA configuration. Resident transport to medical appointments, dialysis centers, outpatient procedures, and community outings requires consistent wheelchair access, comfortable boarding, and a vehicle small enough to navigate residential and medical campus drop-off areas. The B4's 24-foot footprint handles most of these environments comfortably, and the non-CDL configuration keeps the vehicle operable by facility transport staff without specialized licensing.
NEMT Providers and Medicaid-Funded Transport
Non-emergency medical transportation providers need ADA-compliant vehicles that can document accessibility feature maintenance for Medicaid compliance reporting. Endera Dispatch — included with every B-Series shuttle — provides vehicle health monitoring and service documentation built into the fleet management platform, which supports the operational record-keeping NEMT operators need alongside daily route management. For NEMT fleets running multiple vehicles across multiple routes, the real-time state-of-charge monitoring on the electric variant also removes the range planning burden from drivers.
Churches, Nonprofits, and Community Organizations
Churches and community organizations with volunteer driver pools specifically look for configurations that stay below the CDL threshold. The 12-passenger plus two-wheelchair-position layout is the standard answer to that need — maximum inclusive capacity without crossing into commercial licensing territory. For organizations operating on constrained budgets, Endera's capital leasing option allows the vehicle cost to be spread over time while keeping operating funds available for program delivery.
University and Healthcare Campus Transit
University disability services departments and healthcare system campus transit programs need accessible shuttles that integrate with the broader transportation network. The B4's Endera Go software provides real-time vehicle location and ETA data for passengers — relevant for users who depend on the accessible shuttle and need visibility into when the vehicle is arriving. For university procurement, eligible vehicles must meet FTA Buy America requirements when federal transit funding is involved — Endera's B4 is Buy America compliant and manufactured entirely in Ottawa, Ohio.
Funding Options for 12-Passenger ADA Shuttle Purchases
FTA Section 5310: Enhanced Mobility for Seniors and Individuals With Disabilities
The FTA Section 5310 program provides formula funding to support the mobility of seniors and individuals with disabilities — including capital funding for vehicles and equipment. Eligible recipients include states, designated recipients, and nonprofit organizations. For senior living operators, NEMT providers, and community organizations that don't qualify for standard FTA capital programs, Section 5310 is often the most direct federal funding pathway for an accessible vehicle purchase in this capacity range.
FTA Low or No Emission Program for the Electric B4
For organizations considering the electric B4, the FTA Low or No Emission Vehicle Program funds zero-emission bus purchases for eligible transit operators. The electric B4's Altoona certification and Buy America compliance make it directly eligible for FTA-funded procurement, removing two of the most common compliance barriers in the application process. Endera assists operators with identifying applicable programs and managing applications directly — which matters particularly for nonprofits and smaller operators managing ADA transport programs without dedicated grant staff.
Comparing the Endera B4 ADA to Other 12-Passenger Accessible Options
What the Market Offers at This Capacity
The 12-passenger-plus-wheelchair market is well-served by established body builders. Starcraft offers the Allstar line in a 13+2 wheelchair station configuration that is one of the most widely sold non-CDL accessible shuttles in the country. ElDorado and Glaval also offer configurations in this range on Ford E450 and other cutaway platforms. These are legitimate options for buyers prioritizing established dealer networks, lowest upfront cost, or specific body features that fall outside Endera's current lineup.
Where Endera's Position Is Distinct
Where Endera differs is in vertical integration and the software stack. The body, powertrain, and fleet management software are all built by one manufacturer — which means single-vendor accountability for the whole vehicle and an integrated Dispatch platform that body builders don't offer as a manufacturer-supported product. For buyers who also want the electric option with Altoona certification and Buy America compliance in the 12-passenger ADA configuration, Endera is currently the only manufacturer offering that combination in this class.
The Right Configuration for the People Who Depend on It
A 12-passenger bus with a wheelchair lift isn't a compromise between capacity and accessibility — when the floor plan is built around both from the start, it's the right vehicle for the routes that matter most. Endera's B4 ADA configuration is available in ICE and electric, non-CDL in most states, and backed by one manufacturer accountable for the vehicle, the lift, the software, and — for the electric variant — the charging infrastructure.
Contact Endera's fleet specialists to confirm current configurations, check in-stock availability, and find out what funding your organization may qualify for.
FAQs
1. Is the Endera B4 ADA configuration non-CDL?
In most states, yes. A configuration of 12 ambulatory passengers, 2 wheelchair positions, and 1 driver equals 15 total — below the FMCSA CDL threshold of 16. State laws vary, so confirm with your state DOT before finalizing the purchase.
2. What lift is included in the Endera B4 ADA configuration?
The B4 ADA configuration includes a full-capacity wheelchair lift meeting 49 CFR Part 38 specifications — 30-inch by 48-inch minimum platform, 600-pound minimum design load. Front or rear lift placement is available. Contact Endera's team to confirm current lift options.
3. Can the wheelchair positions be converted to ambulatory seating?
Yes. The B4 ADA configuration includes fold-down seats at wheelchair positions, allowing conversion between ambulatory and wheelchair configurations depending on the passenger mix for a given trip.
4. Is the electric B4 available in the ADA configuration?
Yes. The electric B4 is available with ADA lift and securement configuration. It carries a 90.1 Altoona score and is Buy America compliant — both required for FTA-funded purchases.
5. What funding is available for a 12-passenger ADA shuttle?
The FTA Section 5310 program is the most direct pathway for senior and disability transport organizations. The FTA Low or No Emission program applies to the electric variant. Endera assists with identifying programs and managing applications.
6. Does Endera provide charging infrastructure for the electric ADA B4?
Yes. Endera provides turnkey charging infrastructure — site assessment, charger sourcing, and installation — as part of its EV offering.
7. Does Endera offer financing for ADA shuttle purchases?
Yes. Endera offers direct financing and capital leasing through its financing platform. Capital leasing is a practical option for nonprofits and senior care operators who want to preserve operating funds while building owned-fleet accessible transportation capacity.
